IoT NTC Thermistor Temps Using thethings.iO

Using the mcthings IoT platform and NTC thermistors, display the incoming real-time information into thethings.iO IoT dashboard!

BeginnerFull instructions provided1 hour1,351

Things used in this project

Hardware components

mcModule120 Dev Kit
mcThings mcModule120 Dev Kit
We recommend a kit for this example so that you have multiple modules to gather information from (Not required but you will need at least one mcModule, one mcGateway and an mcDongle)

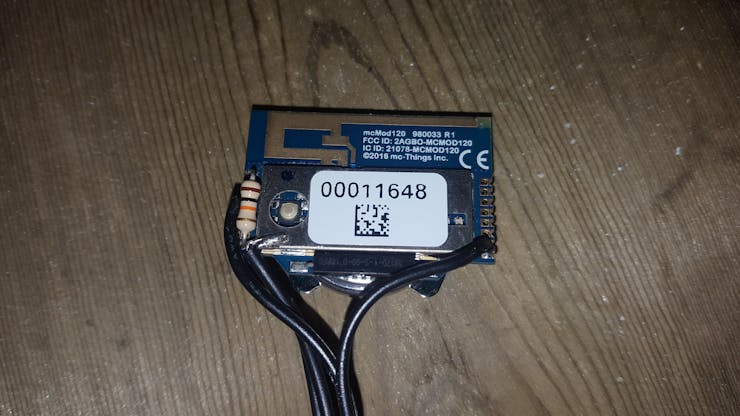

mcMod120 Module
mcThings mcMod120 Module
You'll need at least one mcModule120 for this project
mcThings mcGateway110
You'll need an mcGateway for this project
mcThings mcDongle
You'll need one of these to complete your firmware updates! Be sure to update your firmware to the latest versions before starting
Adafruit - 10K Precision Epoxy Thermistor - 3950 NTC
One of the thermistors we used
U.S. Sensor - NTC Thermistor USP10972
one of the thermistors we used

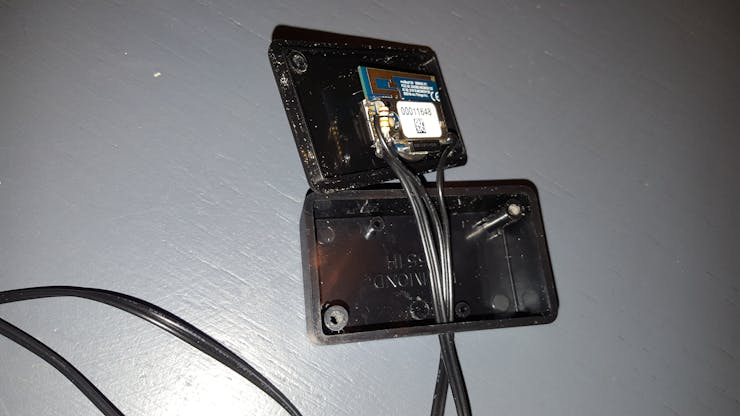

Hammond- small plastic encosure
You don't have to use this one or even put the module into a case at all
Resistor 10k ohm
Resistor 10k ohm
to use as a voltage divider

Software apps and online services

mcThings mcStudio
thethings.iO IoT cloud application

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)


Read more


mcMod120 hardware information

Code Github

example projects for connecting the mcThings platform to application
